Oscilloscope Multimeter Signal Generator 3.2inch IPS Handheld Oscilloscope 120Mhz 250MSa/s Dual Channel Oscillometer ,Easy to Use

<p>Specifications:</p><p>Name: 3in1 Digital Oscilloscope</p><p>Material: ABS</p><p>Display: 3.2 inches IPS color screen</p><p>Battery: 1 * built-in 2500mah rechargeable lithiu m battery(included)</p><p>Oscilloscope:</p><p>Real-time sample rate: 200Msps</p><p>Analog Bandwidth: 120MHz (CH1 only); 60MHz (CH1+CH</p><p>More items from our store:tools, power tools, construction tools, household tools, electrical equipment, essential tools, renovation tools</p>

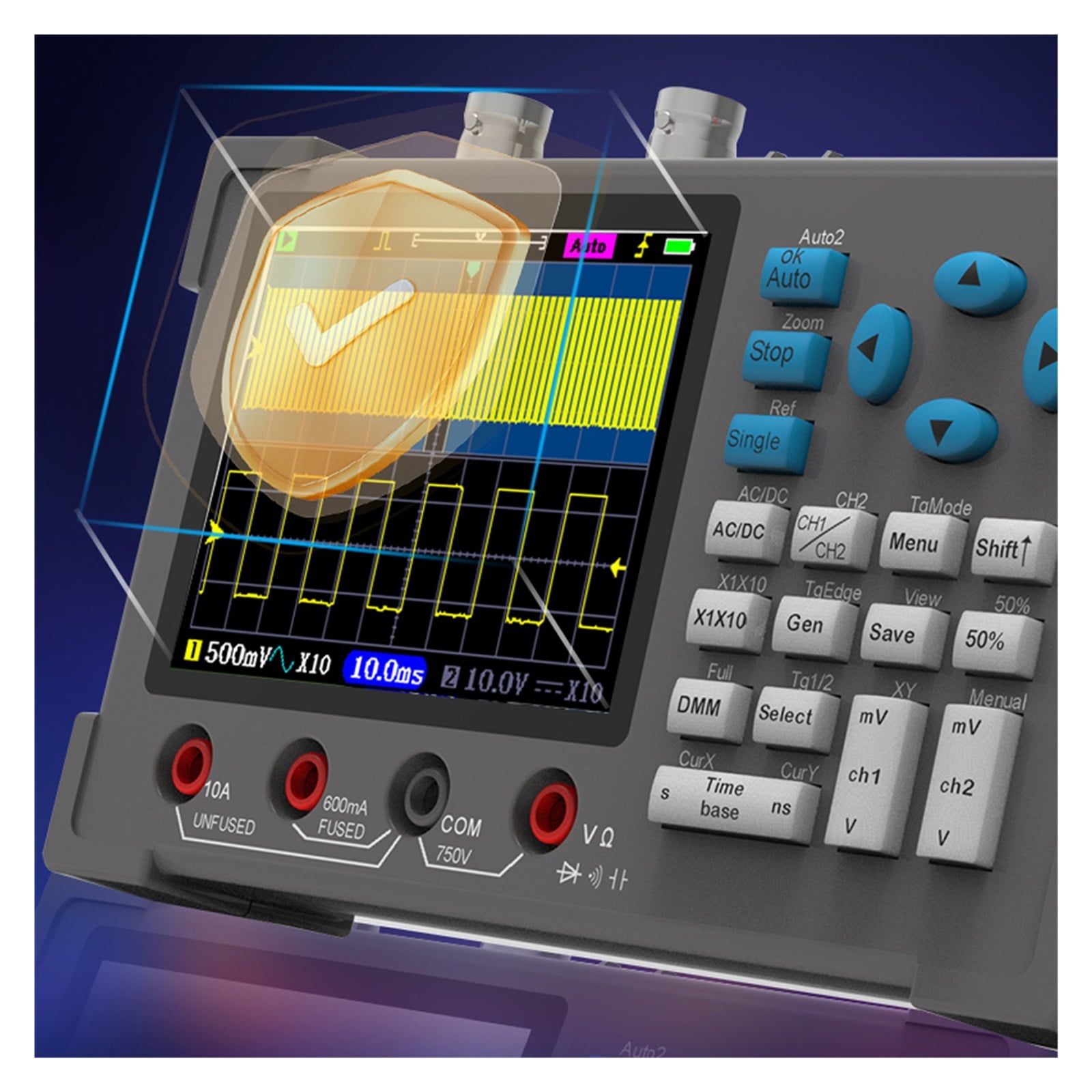

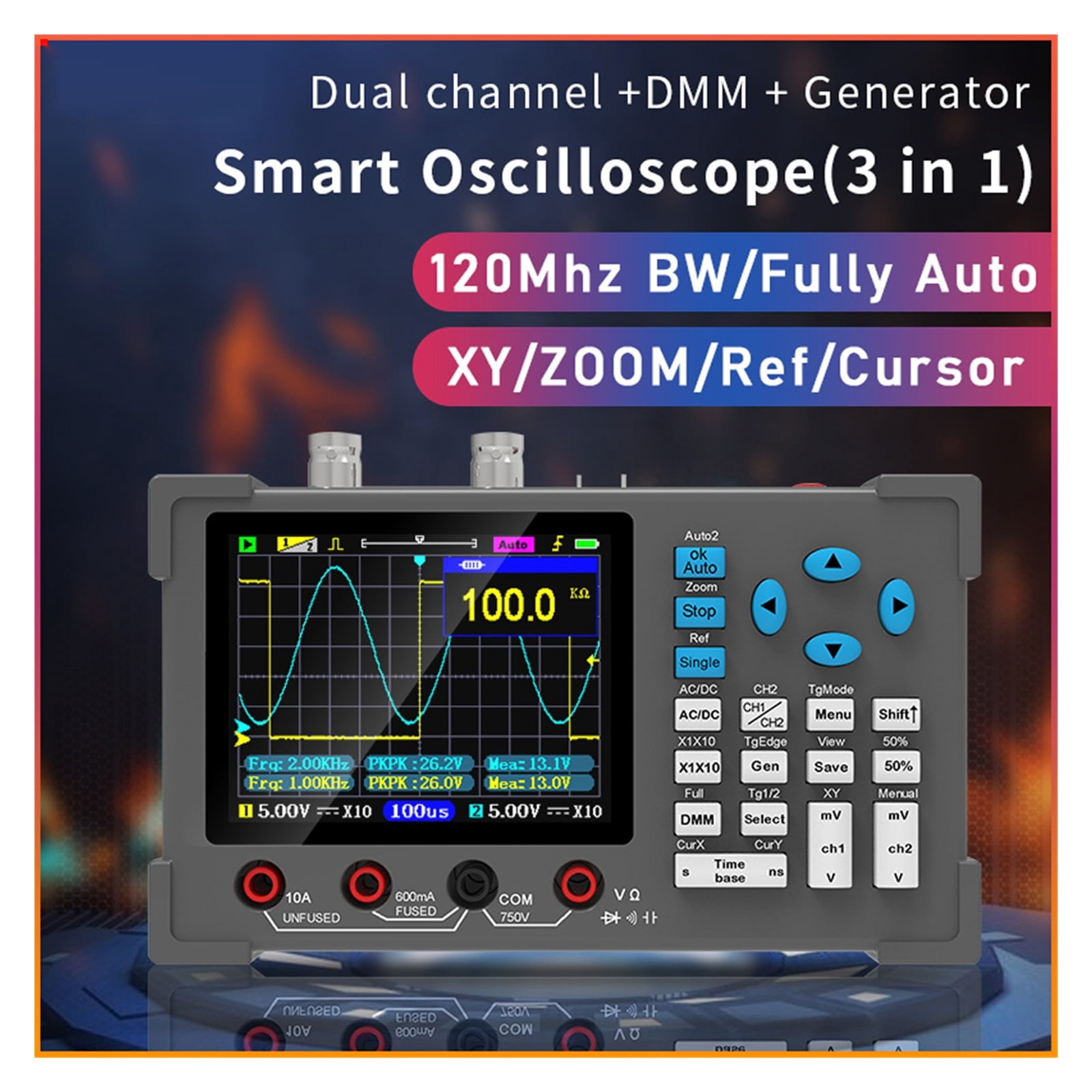

• 3In1 Design with IPS Display: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.2-inch clear-definition IPS display, high sensitivity full view display, channel 2 waveforms can be set to green/ cyan/purple.
• Signal Generator: Built-in waveform signal generator, it can output sinewave, squarewave, trianglewave, and so on. The voltage amplitude is 2.5V, the frequency is adjustable from 0-2Mhz, and the squarewave duty cycle is adjustable from 1% to 99%.
• High-precise Multimeter: Built-in true RMS multimeter, that supports quick software calibration. With DC/ACvoltage, DC/ACcurrent, resistance, capacitance, diode, and continuity test. When measuring low voltage /resistance/continuity, the oscilloscope and multimeter functions can be used simultaneously (small window in the upper right corner).

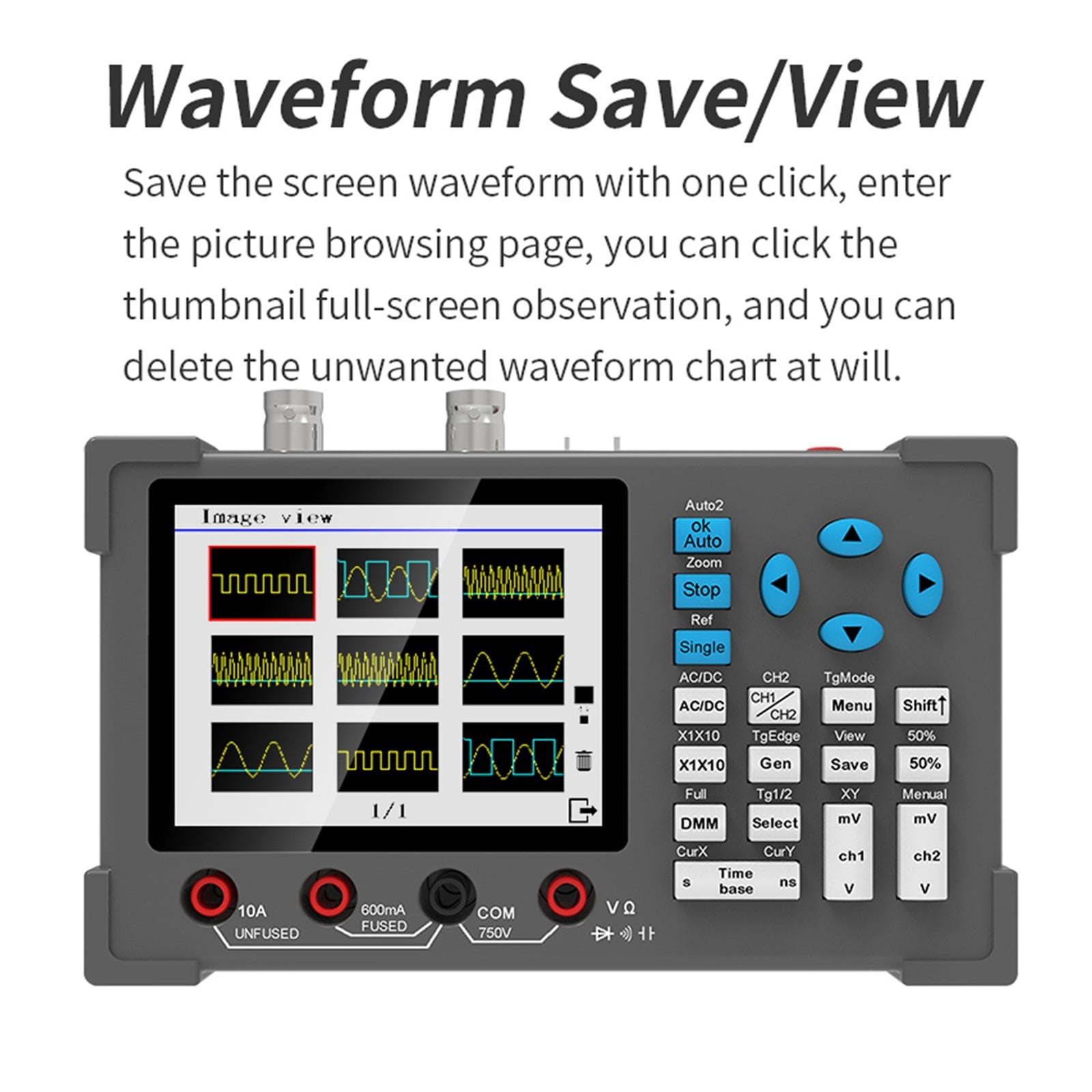

• Digital Oscilloscope Function: Dual channel oscilloscope function, with 120MHz bandwidth and 250MSa/s sampling rate. With trigger function (automatic, single, normal). Supports sensitivity and time base adjustment, automatic mode adjustment, 2-channel waveform analysis, cursor measurement, reference waveforms, FFT spectrum, reference waveforms, waveform save and view.

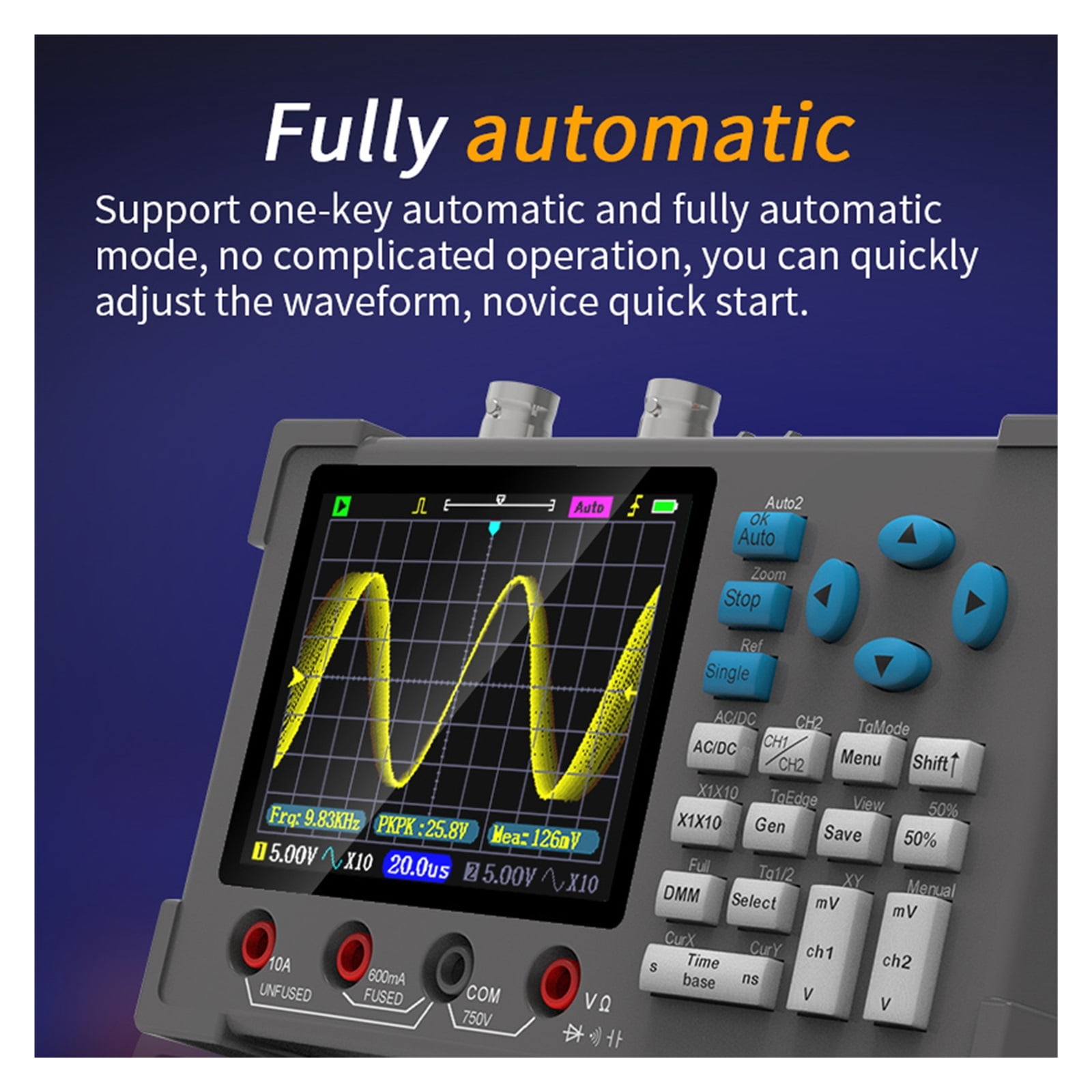

• Sensitivity and Time Base: The oscilloscope will automatically detect the signal and adjusts the ranges. Support manual adjustment of the waveform vertically and horizontally. The vertical sensitivity indicates the voltage in the vertical direction, and it is adjusted by the mV and V buttons to adapt to different voltages. The time base represents the time in the horizontal direction. It is adjusted by the S and NS buttons to accommodate different frequencies. In the stop mode, the user can move the waveform left and right.
