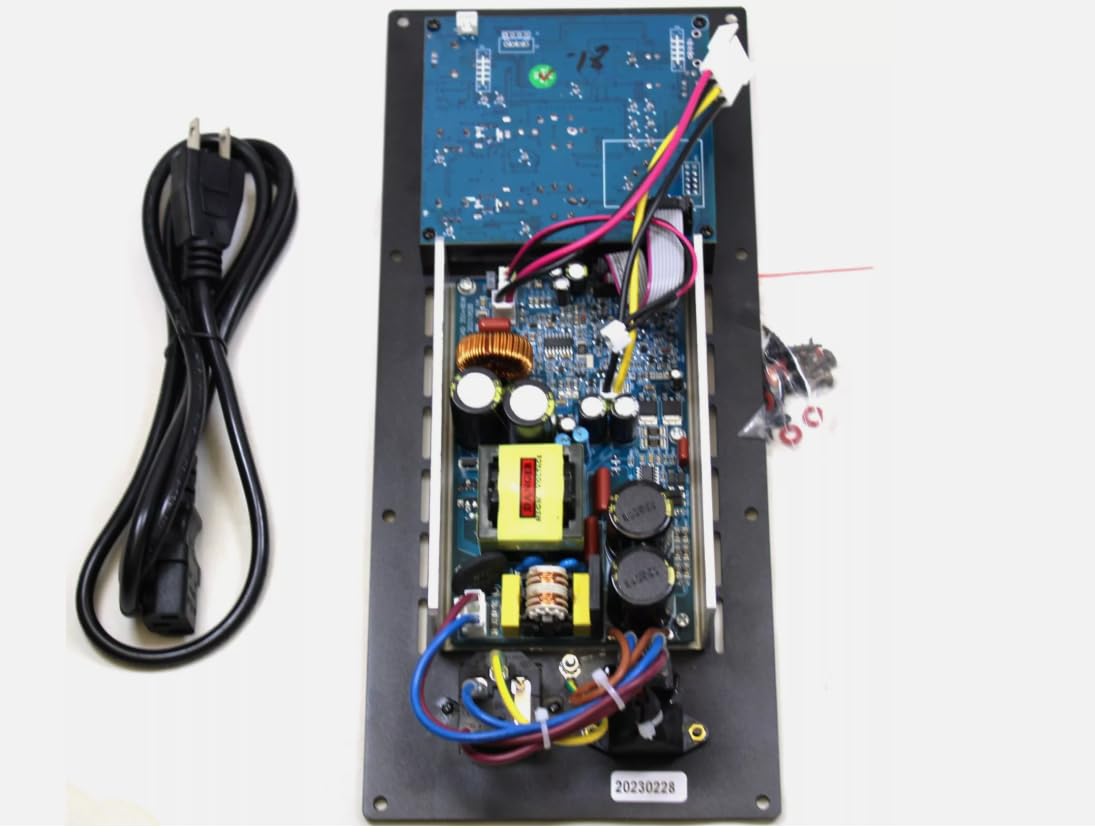

LASE Amplifier Intended for Mackie Thump 1300W 12A/ 15A w/DSP (110V)
Product details
| Management number | 221445700 | Release Date | 2026/05/03 | List Price | US$91.60 | Model Number | 221445700 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LASE Amplifer for Mackie THUMP 1300w 12A or 15A for Mackie THUMP Powered Speaker Cabinet. Professional Bi-Amp Power-Amplifier Module With DSP Control. This will not work on the Original Mackie Thump 15A & 12A or Thump 12BST or 15BST Speakers (2) Two Individual Channel Inputs with Push Button mic/line level inputs. A Mix level XLR output ( Pre DSP). Master Control with DSP (digital signal processor) push button control.
- Power Rated @ 8 Ω ONLY. Output Power : 20-20kHz, 1W with 1 khz Power Output RMS : 500 W RMS, 1000 W peak (overall) @ 8 Ω. 400 W RMS, 800 W peak (LF) 100 W RMS, 200 W peak (HF)
- Frequency Response(+o/-0.3dB,1W/8Ω) : 20 Hz - 34 kHz Crossover Frequency : 1.7 Khz THD : 20 Hz - 20 kHz for 1 W <0.1% Signal-to-Noise Ratio : >112 dBA Channel separation : (Crosstalk) at 1 kHz >70 dB
- Input Connectors (per channel) : 3-pin XLR, 1/4" phono, electronically balanced. Output Connector (Mix Out) : 3-pin XLR, electronically balanced Class : D wiring Operating voltage : 110 V / 220 V nominal
- Dimensions : (L×W×D) : 12.5" x 5.5" x 2" (317.5mm x 139.7mm x 50.8mm). Packing dimension : 14.5" x 10" x 5" (368.3mm x 254mm x 127mm) Net weight :2.73lbs (1.23Kgm) Gross weight :3lbs(1.36Kgm)
| UPC | 810175750286 |
|---|---|
| Model | 110V |
| Brand Name | LASE |
| Part Number | EKX12P/15P |
| Manufacturer | LASE |
| Output Power | 500 Watts |
| Material Type | Metal |
| Mounting Type | Freestanding |
| Specification Met | Professional Audio Industry Standards |
| Number of Channels | 2 |
| Included Components | Amplifer Module |
| Maximum Supply Voltage | 220 Volts |
| Minimum Supply Voltage | 110 Volts (DC) |
