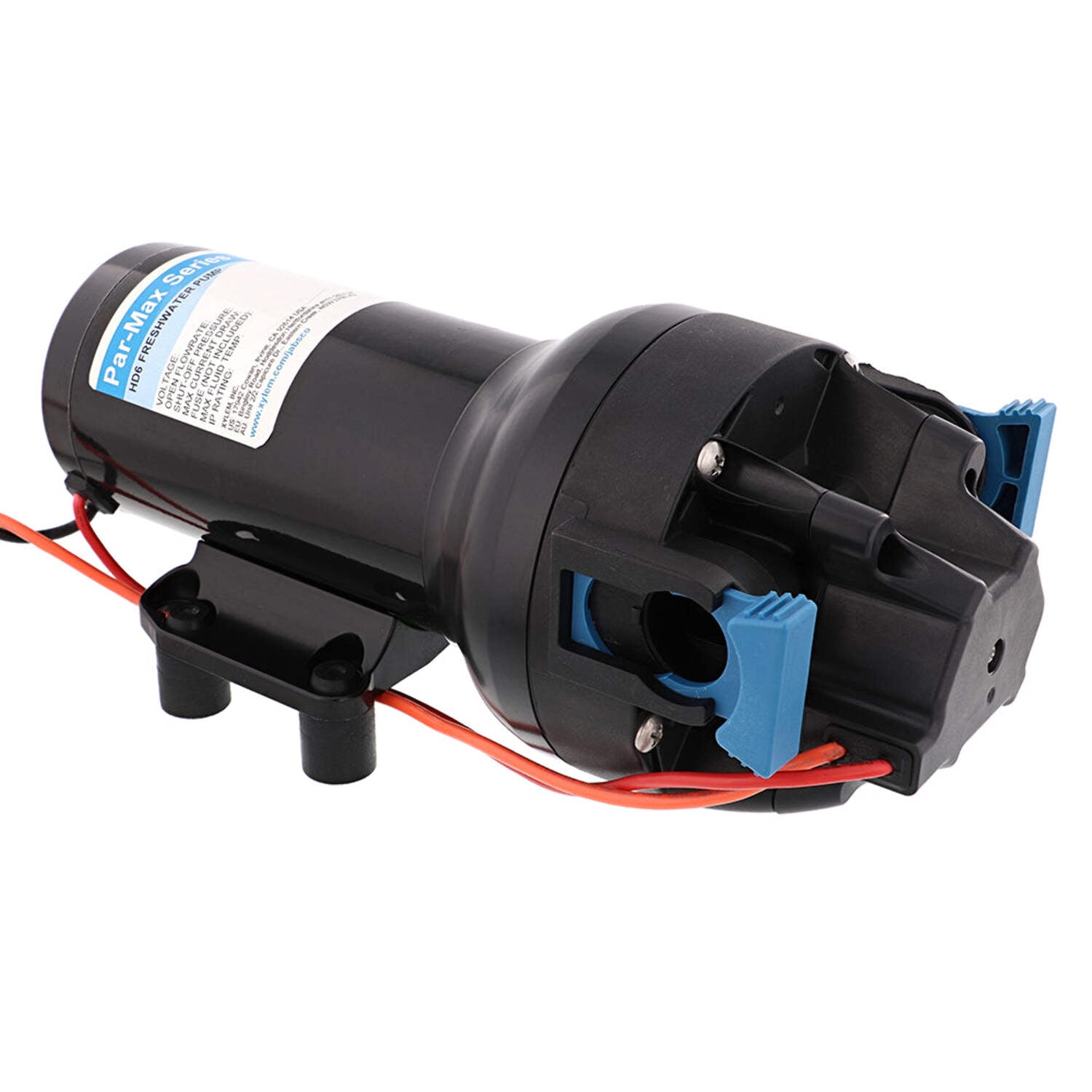

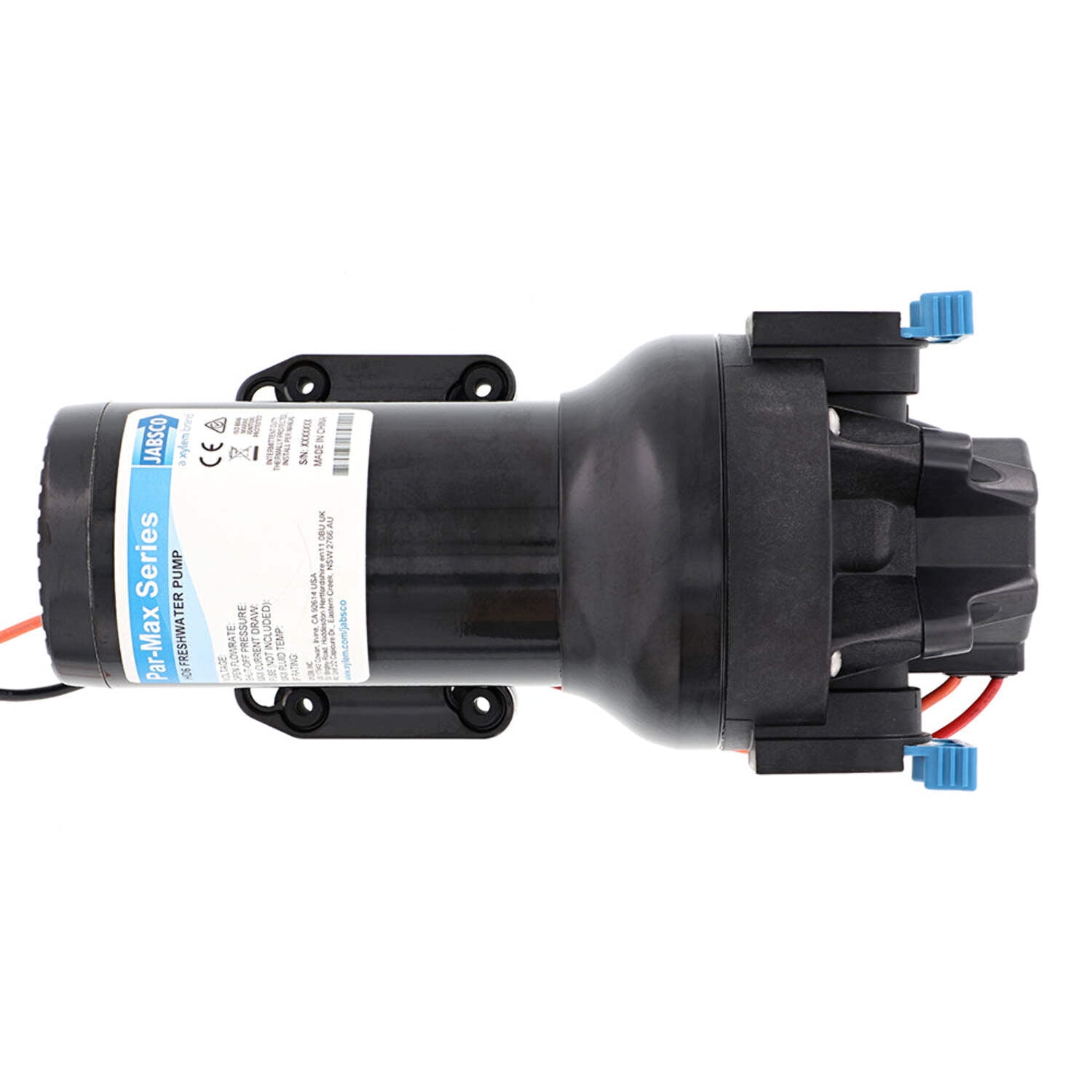

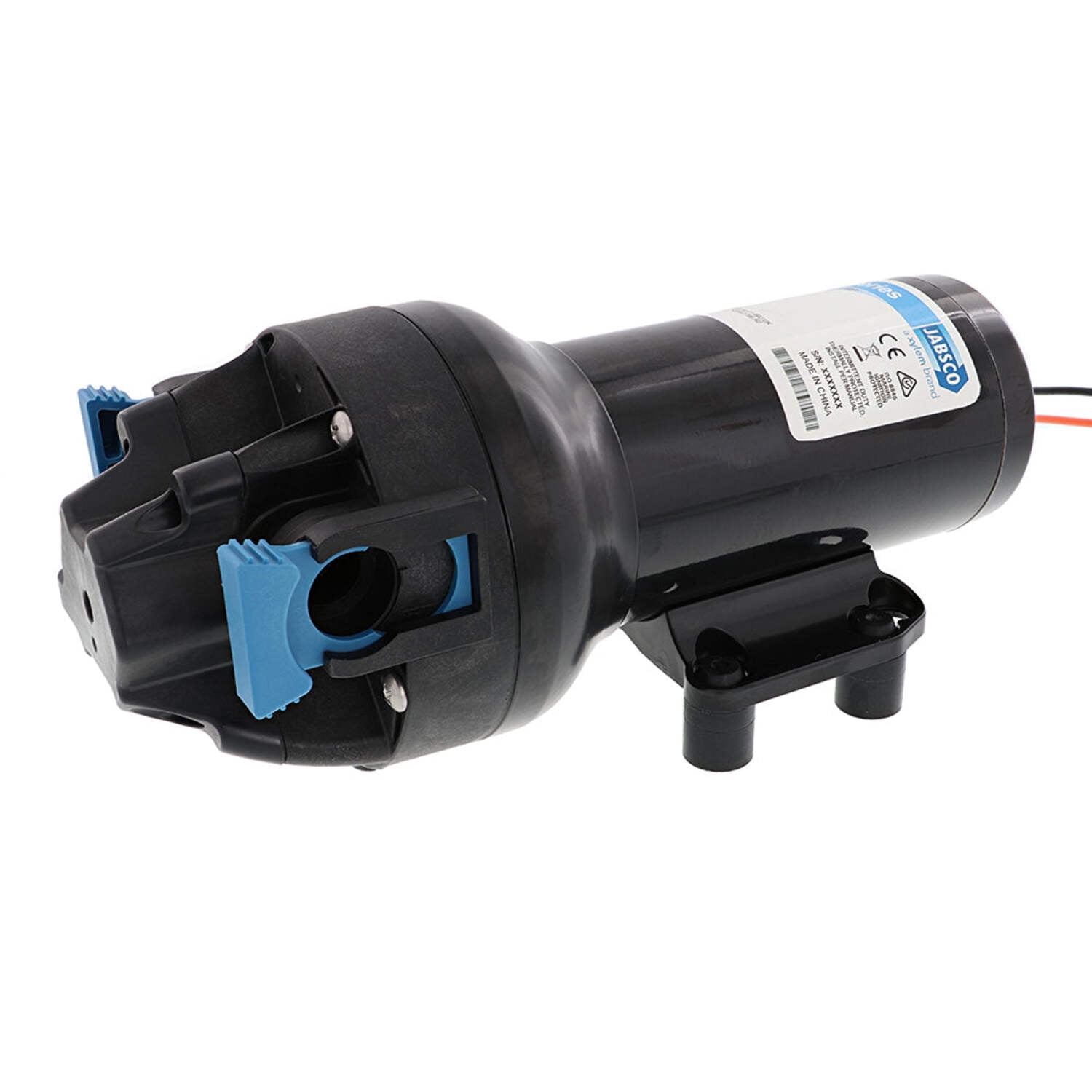

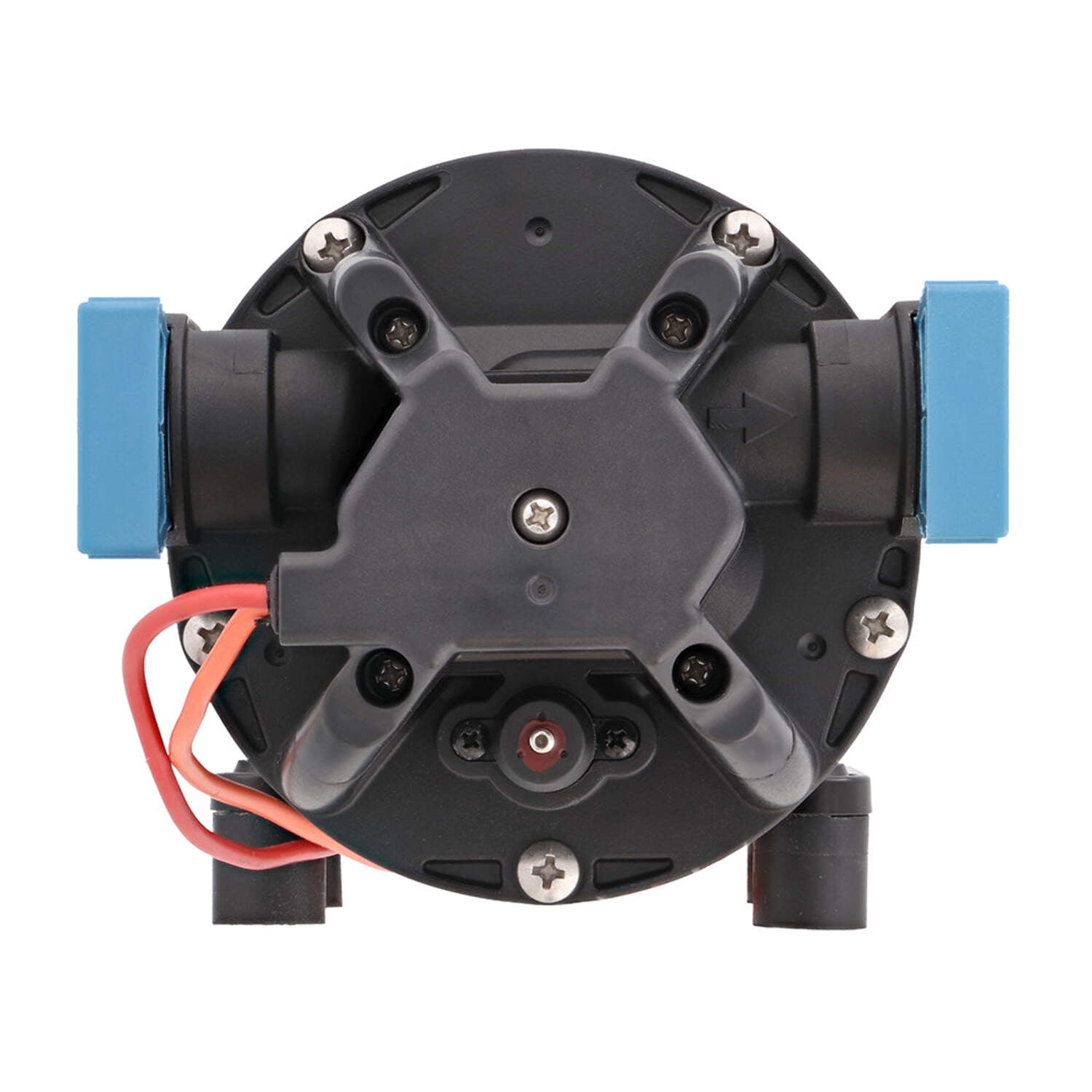

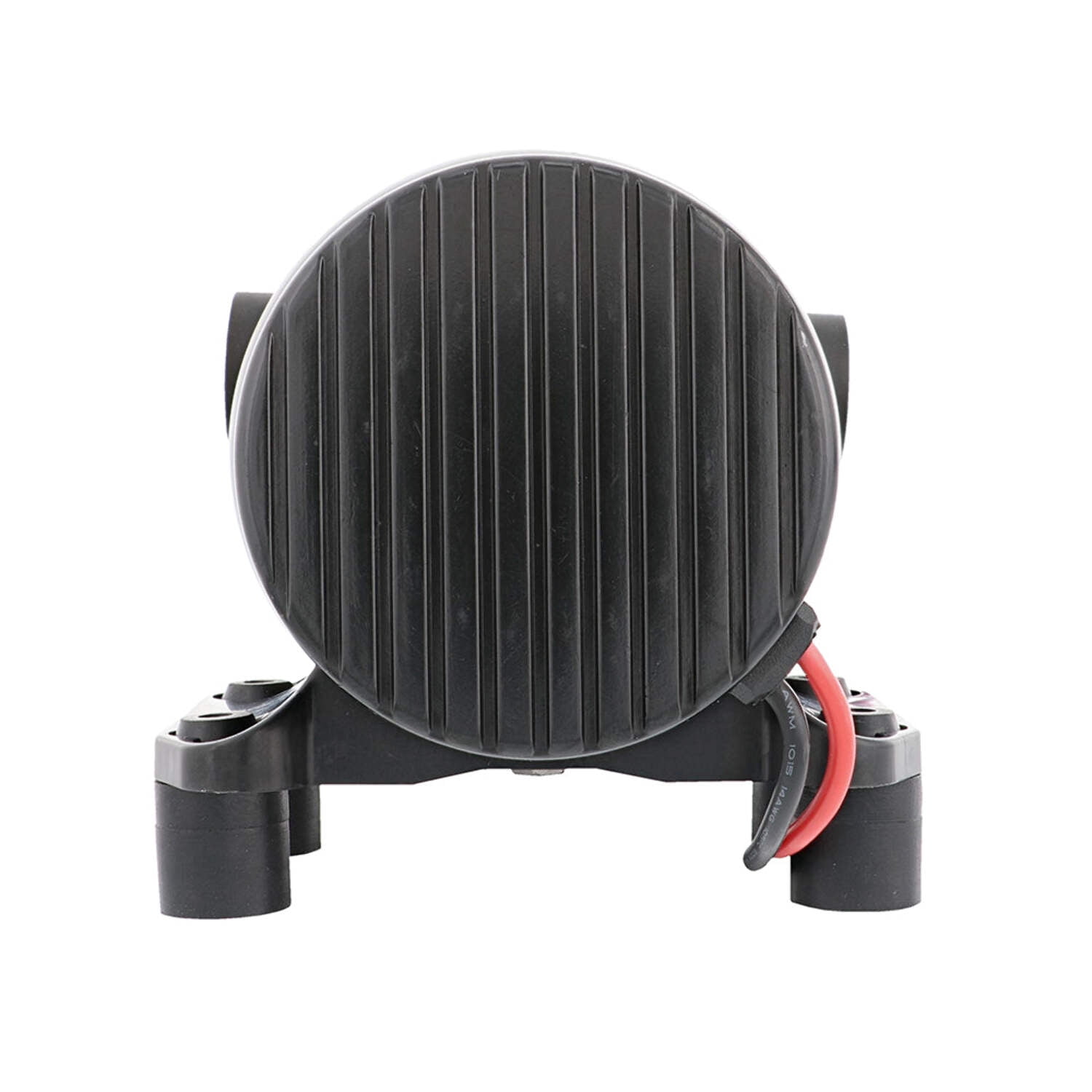

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSI

<p><strong>Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSI</strong></p><p>HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.&nbsp;</p><p>Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.&nbsp;</p><p><strong>Features:</strong></p><ul><li>Co-molded diaphragm technology for long life and durability</li><li>HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures</li><li>Efficient and quiet operation</li><li>Integrated, sealed pressure switch for on-demand operation</li><li>Self-priming allows for installation versatility</li><li>Can run dry without damage</li><li>Quick connect ports for ease of installation, servicing, and maintenance</li><li>Vibration dampening mounting feet</li><li>Equipped with integrated bypass module to reduce cycling and provide smoother flow</li></ul><p><strong>Specifications:</strong></p><ul><li>Motor design: Brushed, permanent magnet TENV&nbsp;</li><li>Pumphead upper housing material: Glass fiber reinforced polypropylene&nbsp;</li><li>Diaphragm: Co-molded TPV&nbsp;</li><li>Check valves: EPDM&nbsp;</li><li>Max inlet pressure: 30 PSI (2.1 Bar)&nbsp;</li><li>Fluid temperature range: 32°F – 140°F (0°C – 60°C)&nbsp;</li><li>Dry self-priming capability: 7ft min (2.13m/min)&nbsp;</li><li>Certifications: CE, ISO8846, RCM</li><li>Ingress Protection: IPX6</li></ul><p><strong>WARNING:</strong> This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to <a href="http://P65Warnings.ca.gov">P65Warnings.ca.gov</a>.</p> <div class="row"><div class="col col-sm-8 section"><div class="features"><p><b>FEATURES</b></p><p></p><ul><li>Volts = 12v | Max PSI = 60 | Gallons Per Minute = 6 GPM</li></ul></div></div></div>

• Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features:
• Co-molded diaphragm technology for long life and durability
• HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
• Efficient and quiet operation
• Integrated, sealed pressure switch for on-demand operation
• Self-priming allows for installation versatility
• Can run dry without damage
• Quick connect ports for ease of installation, servicing, and maintenance
• Vibration dampening mounting feet
• Equipped with integrated bypass module to reduce cycling and provide smoother flowSpecifications:
• Motor design: Brushed, permanent magnet TENV
• Pumphead upper housing material: Glass fiber reinforced polypropylene
• Diaphragm: Co-molded TPV
• Check valves: EPDM
• Max inlet pressure: 30 PSI (2.1 Bar)
• Fluid temperature range: 32°F – 140°F (0°C – 60°C)
• Dry self-priming capability: 7ft min (2.13m/min)
• Certifications: CE, ISO8846, RCM
• Ingress Protection: IPX6WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
• Volts: 12v
• Max PSI: 60
• Gallons Per Minute: 6 GPM
• Box Dimensions: 6"H x 6"W x 15"L WT: 9 lbs
• UPC: 671880841986Brochure (pdf)
